Inverterji in napajanje

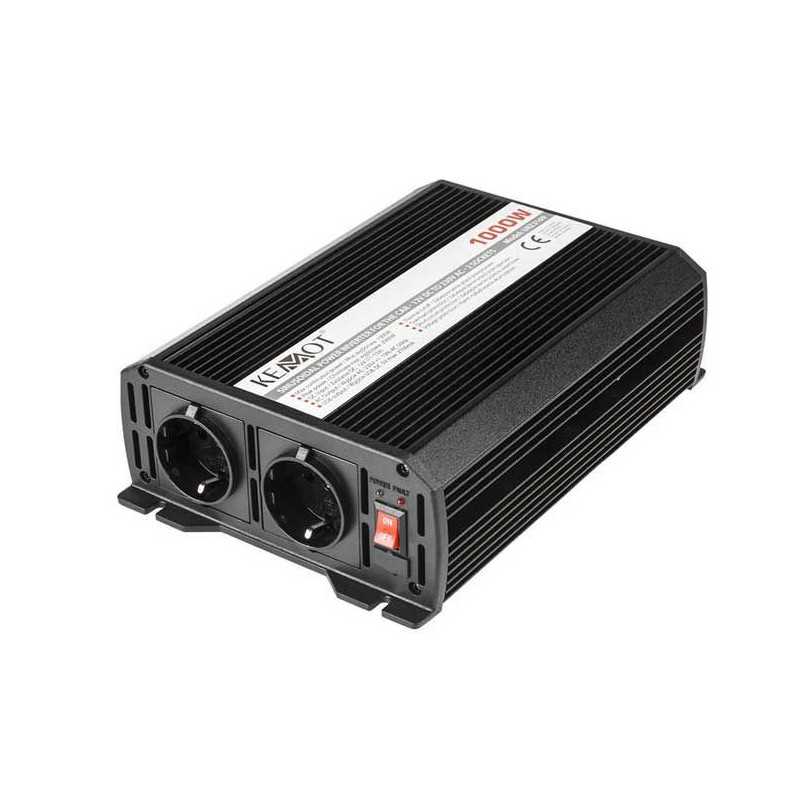

Voltage converter 24 V DC / 230 V AC Output power: 1000 W Immediate output power: 2000 W Power: 24 V (21-30 V) Exit: 230 V +/- 5 in AC 50 Hz 2x socket-shuko Internal protection: low battery alarm (battery), overheating, overload, short circuit, overvoltage protection Cable: 50 cm Dimensions (DXŠXV): 16.5 x 24.5 x 7 cm Weight: 1.76 kg Attached: Connecting cables

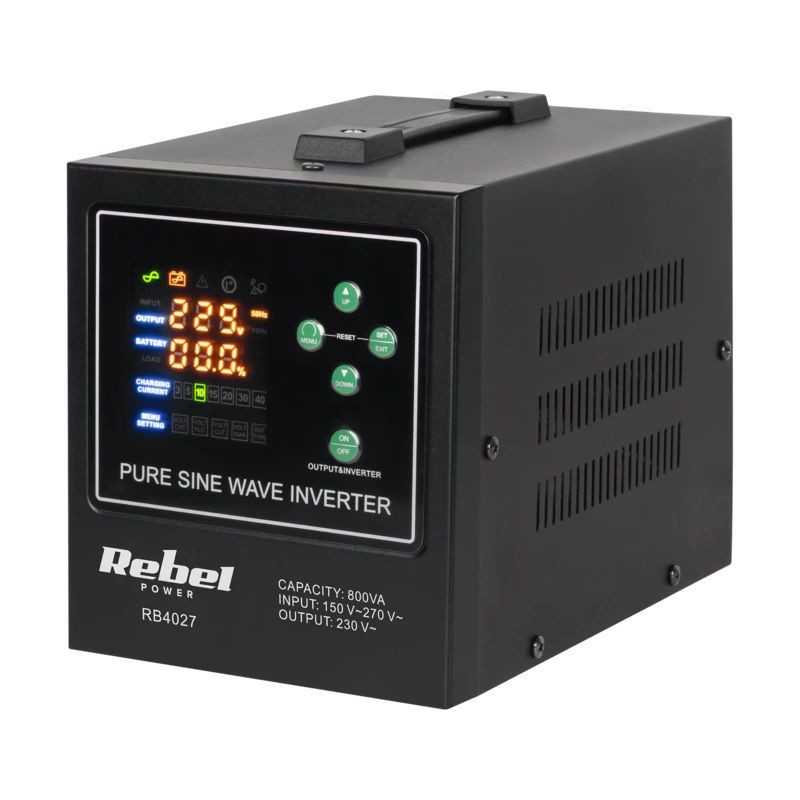

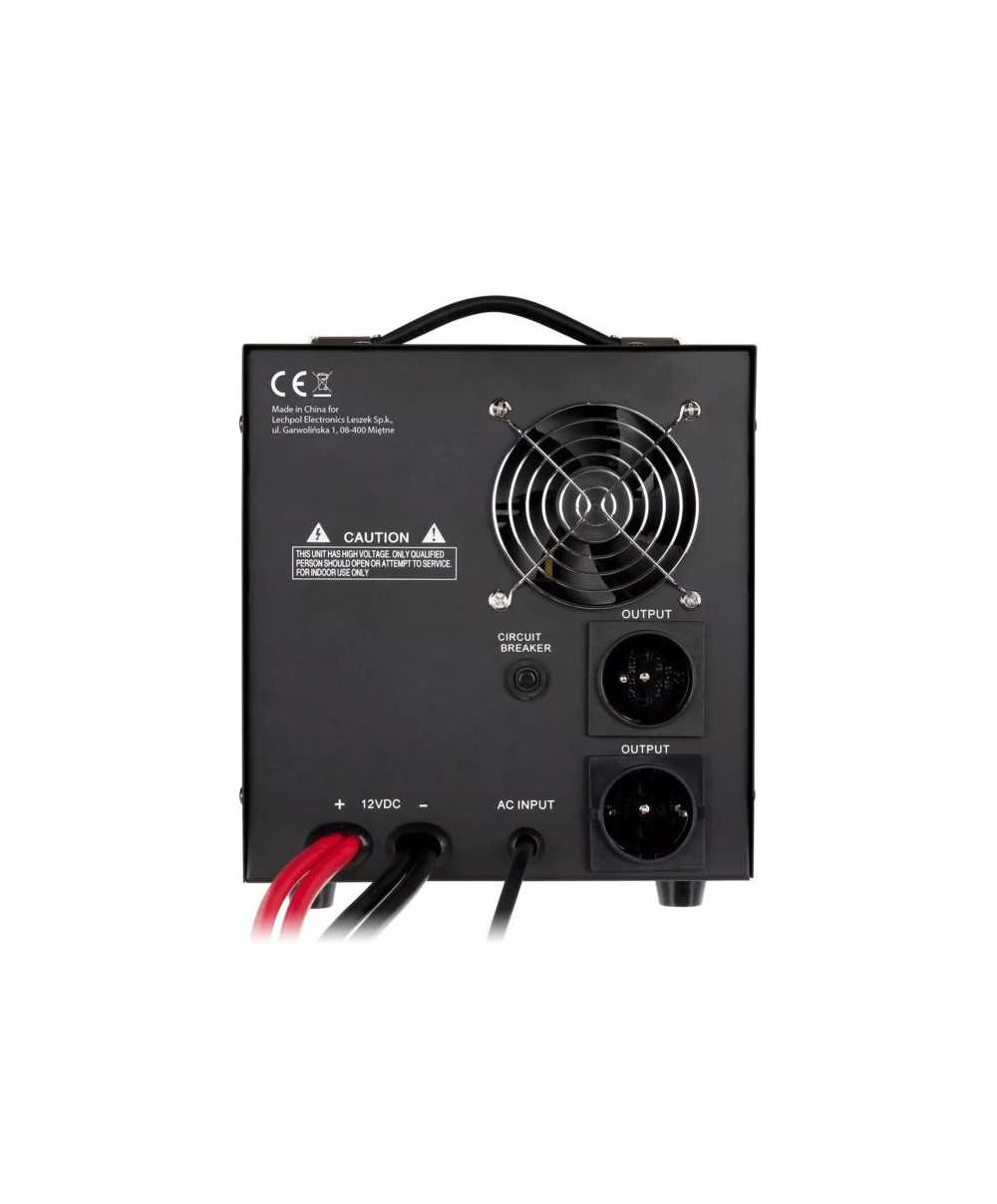

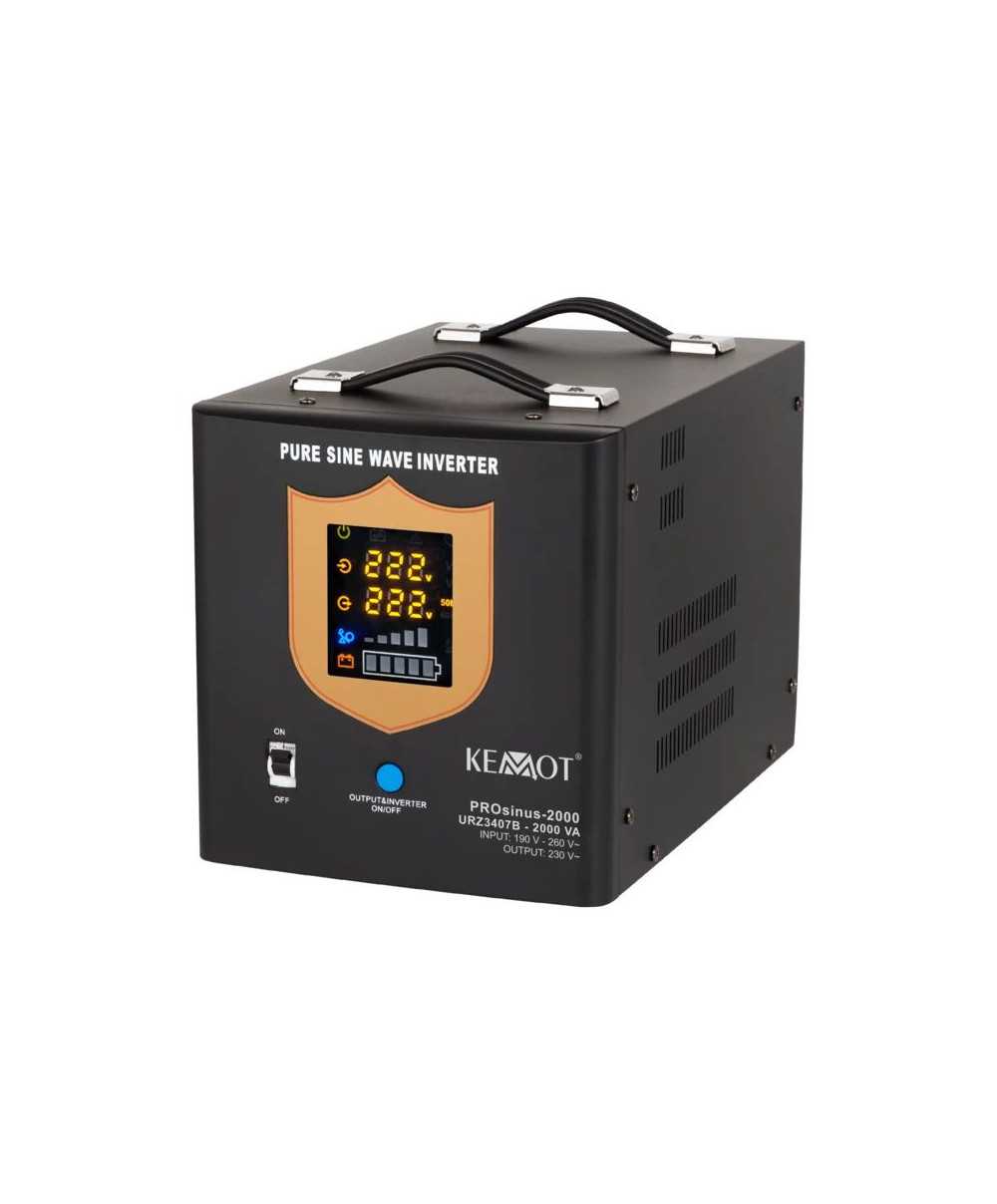

- An emergency energy source of the Predinus-200 is a sinus inverter with a charging function. - intended to supply loads with alternating voltage with a nominal voltage of 230 VAC and power up to 1200 W: - Central heating pumps - induction pumps - a fireplace pump - Automation devices that use thermal convectors - other devices with power up to 1200 W - Due to the clean sinusidal wavelength of the output voltage (power consumption), the device ensures the stable operation of the consumers and prevents the overheating of inductive consumers such as pumps or fans. Together with a 12-volt battery, it forms a comprehensive unit with a guaranteed power supply of 230 VACs. The device is equipped with a battery protection system from overload, short circuit, overvoltage, low voltage and overheating. - The unit can operate in three modes: - 1. As an emergency power source with charging function - it converts a one -way 12V voltage that comes from an external battery, to an alternating voltage of 230 V and a full external battery. - 2. As a charger - full external battery (the device must be connected to a 230 V alternating voltage). - 3. As a converter - converts one -way voltage of 12 V, supplied by an external battery, in an alternating voltage of 230 V. - specification - rated power: 1200 watts - Type of battery: 12 in DC - Maximum battery voltage: 15 in DC - Input voltage range: 190 - 260 in AC - input frequency: 45 ~ 60 Hz -Output voltage range: 230 in AC +/- 5%/230 VAC +/- 3% - Exit frequency: 50/60 Hz +/- 0.5 Hz - Exit form of tension: clean sinus wave - output efficiency> = 85% (DC in AC) - battery charging current: max. 10 a - Battery capacity: 100-400 Ah (proposed: 200 Ah) - Filling time: 4-14 hours (depending on battery capacity) - switching time: - Protection: Before overloading, short circuit, too high or too low - permissible operating temperature: 0-40 ° C - allowed air humidity 10 - 90% - weight: 11.3 kg - Size: 34x22x23 cm - warranty 12 months

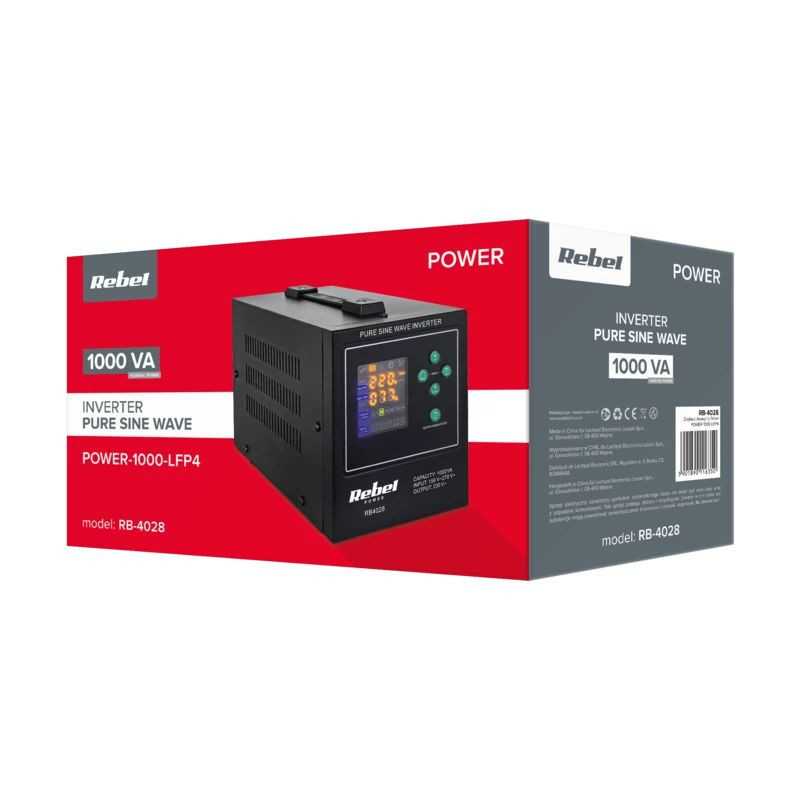

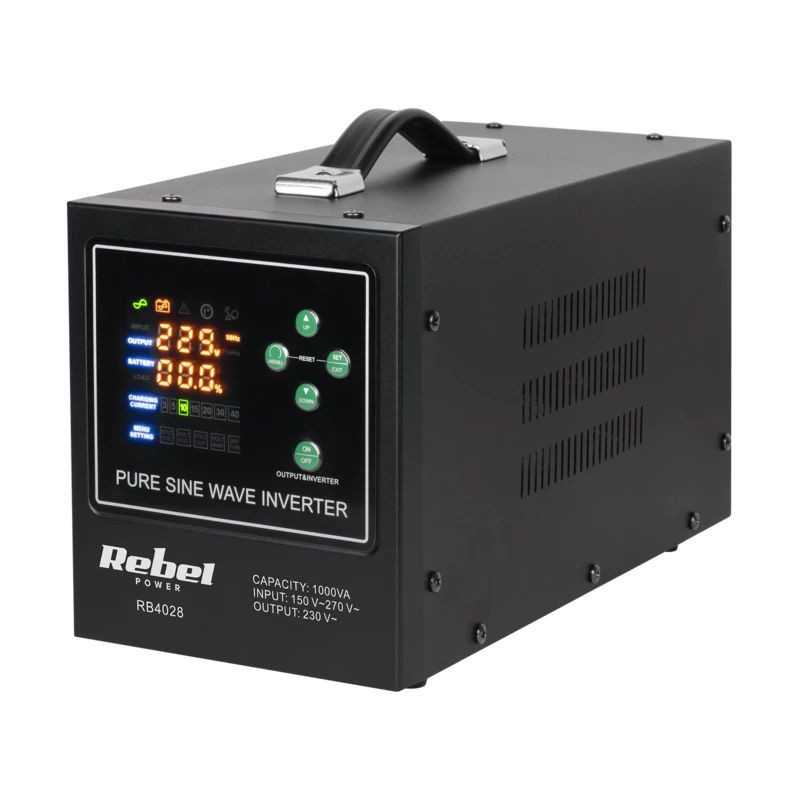

- rated power: 700 W - Type of battery: 12 in DC - Maximum battery voltage: 15 V DC - Input voltage range: 150 - 270 in AC - input frequency: 45 - 60 Hz - Output voltage range: 190- 245 in AC +/- 8 %/inverter: 230 VAC +/- 3 % - Exit frequency: 50/60 Hz +/- 0.5 Hz - output tension shape: pure sinus wave - output efficiency:> = 85 % (DC in AC) - battery charging current: max. 10 a - battery capacity: 50-200 Ah (proposed: 55 Ah) - Filling time: 4-14 hours (depending on battery capacity) - switching time: = - Protection: Before overloading, short circuit, too high or too low - permissible operating temperature: 0 - 40 ° C - allowed air humidity: 10 - 90% - weight: 5.5 kg - Dimensions: 138 x 276 x 155 mm - warranty 12 months

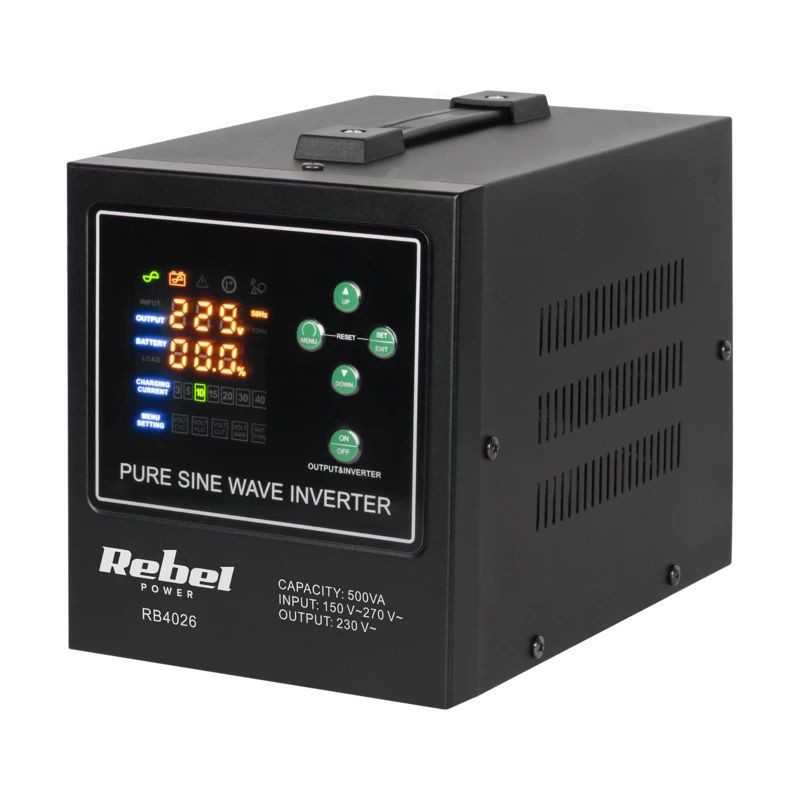

- rated power: 300 watts - Type of battery: 12 in DC - Maximum battery voltage: 15 V DC - Input voltage range: 150 - 270 in AC - input frequency: 45 - 60 Hz - Output voltage range: 190- 245 in AC +/- 8 %/inverter: 230 VAC +/- 3 % - Exit frequency: 50/60 Hz +/- 0.5 Hz - output tension shape: pure sinus wave - output efficiency:> = 85 % (DC in AC) - battery charging current: max. 10 a - battery capacity: 50-200 Ah (proposed: 55 Ah) - Filling time: 4-14 hours (depending on battery capacity) - switching time: = - Protection: Before overloading, short circuit, too high or too low - permissible operating temperature: 0 - 40 ° C - allowed air humidity: 10 - 90 % - weight: 3.95 kg - Dimensions: 138 x 226 x 155 mm - warranty 12 months

- rated power: 500 W - Type of battery: 12 in DC - Maximum battery voltage: 15 V DC - Input voltage range: 150 - 270 in AC - input frequency: 45 - 60 Hz - Output voltage range: 190- 245 in AC +/- 8 %/inverter: 230 VAC +/- 3 % - Exit frequency: 50/60 Hz +/- 0.5 Hz - output tension shape: pure sinus wave - output efficiency:> = 85 % (DC in AC) - battery charging current: max. 10 a - battery capacity: 50-200 Ah (proposed: 55 Ah) - Filling time: 4-14 hours (depending on battery capacity) - switching time: = - Protection: Before overloading, short circuit, too high or too low - permissible operating temperature: 0 - 40 ° C - allowed air humidity: 10 - 90 % - weight: 4.7 kg - Dimensions: 138 x 226 x 155 mm - warranty 12 months

- Tension converter - entrance: 12V - Exit: 230V - 50Hz - 1000W - an indicator of action and power - Overload protection - Protection against short contact - Low input voltage alarm (10.5V) - Automatic shut -off at low input voltage (10V) - warranty: 1 year

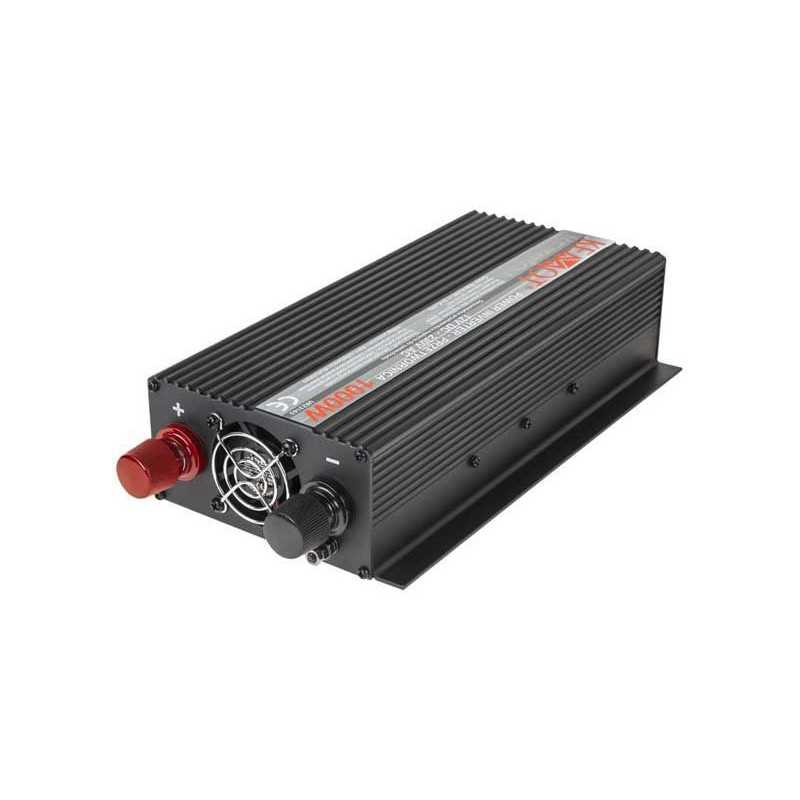

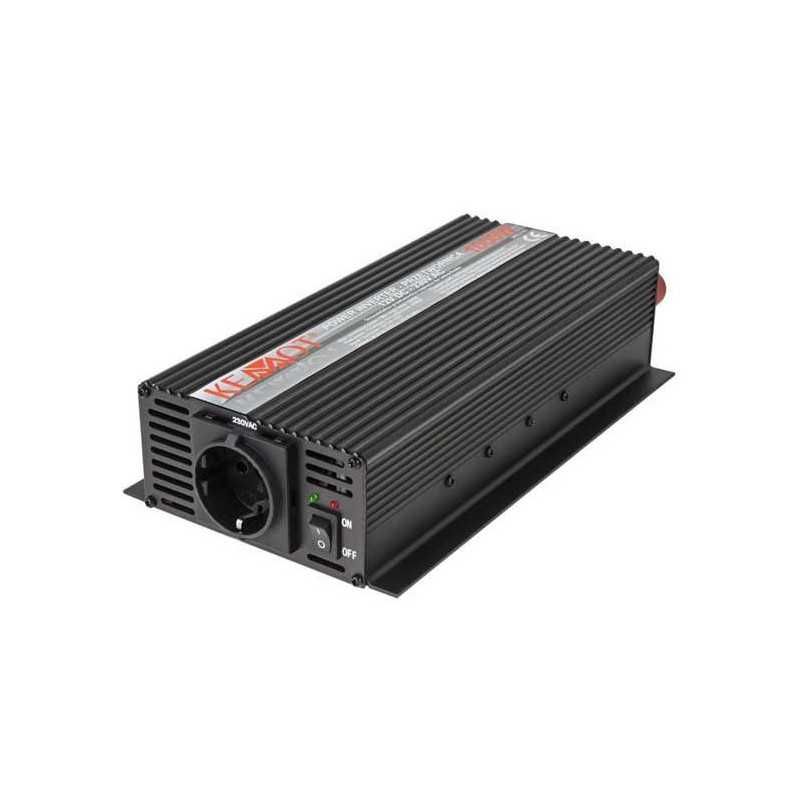

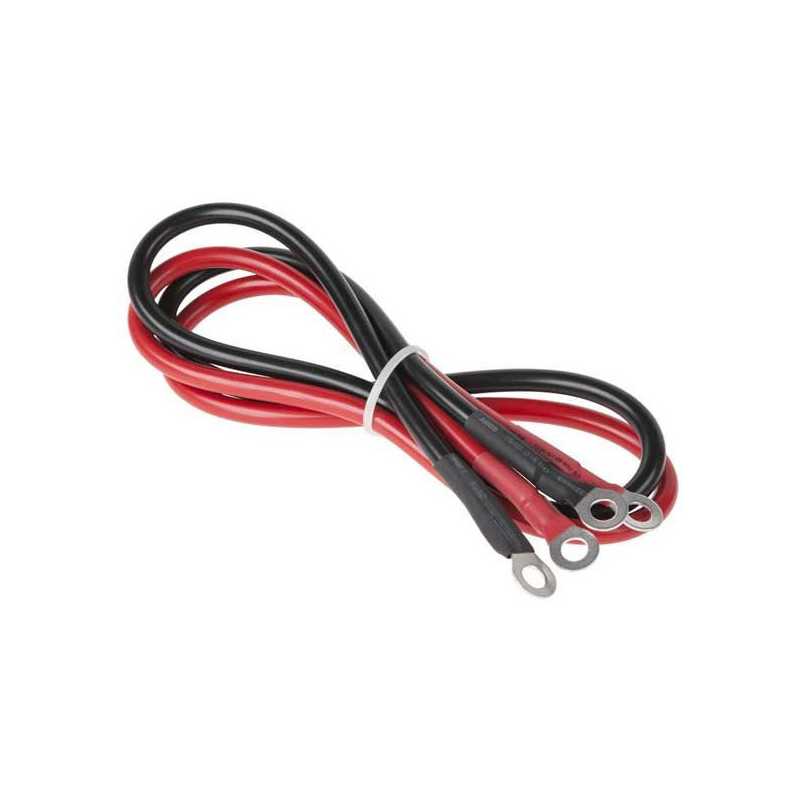

- Tension converter - Inverter for cars for 12 in DC / 230 in AC - output power: 1000 W - Current output power: 2000 W - Power: 12 V (10-15 V) - exit: 230 V +/- 5 in AC 50 Hz - 2 sockets - internal protection: low battery alarm (battery), overheating protection, overload, short circuit, overvoltage - Dimensions (DXŠXV): Appliances: 16.5 x 24.5 x 7 cm with packaging 21 x 27.5 x 11 cm - weight: 1.76 kg (2.05 kg with packaging) - in the kit: Portable cables - warranty: 1 year

- Tension converter - Max. Permanent power: 150W - maximum output power: 300W - Power: 12V DC (11-15 V) - Realization: 220-240 in AC 50 Hz - Efficiency: about 90% - one slot AC - Performance: Aluminum - protection: overvoltage, overload, short circuit, overheating, low battery state - warranty: 1 year

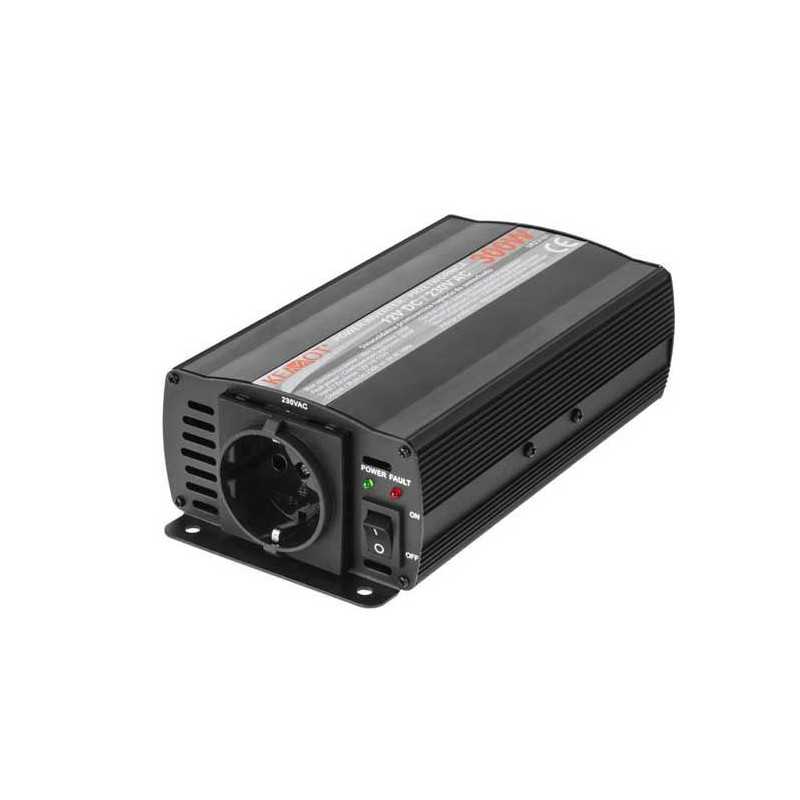

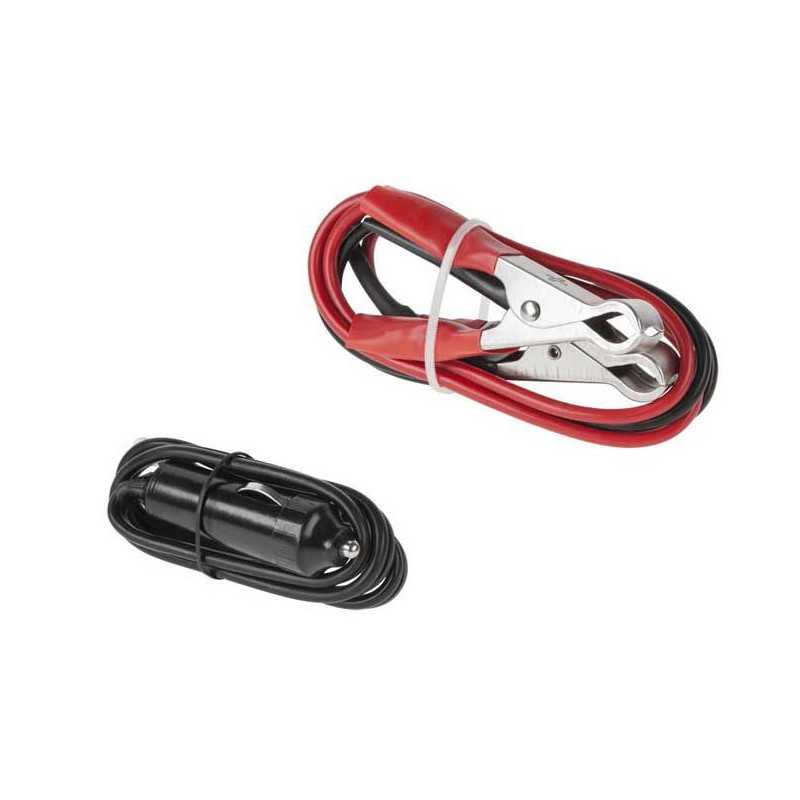

- Tension converter - RMS voltage converter in automotive 12VDC/230vac - output power: 300W - Maximum output power: 600W - Power: 12V DC (10-15 V) - Exit: 230V + /-5V AC 50Hz - Internal protection: - Low Battery Alarm (battery) - overheating protection - Overload protection - Protection recently - Overvolutionary protection - connecting to a cigarette lighter, a set of cables with crocodiles - warranty: 1 year

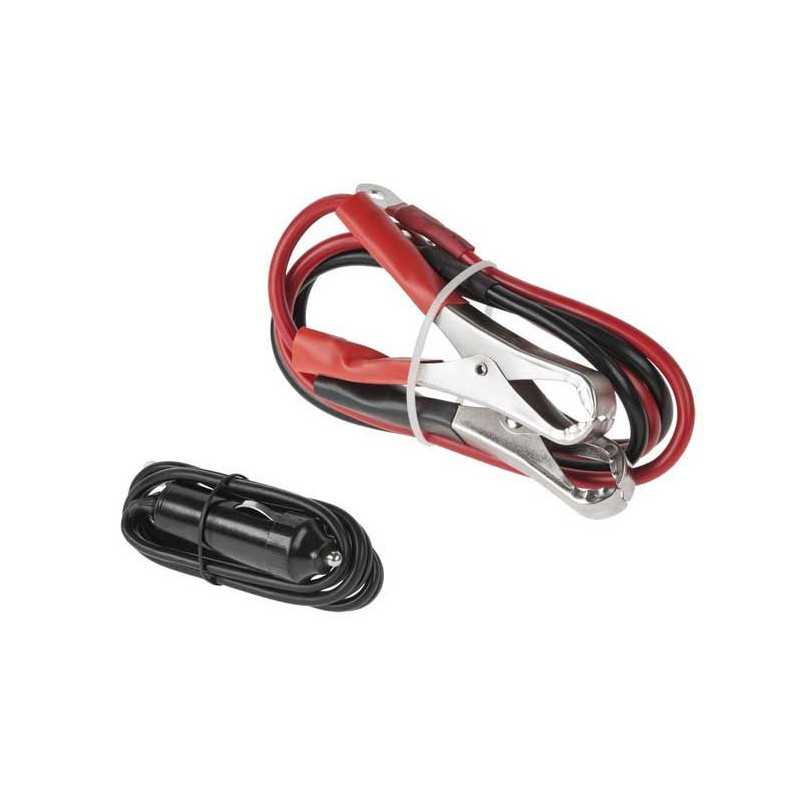

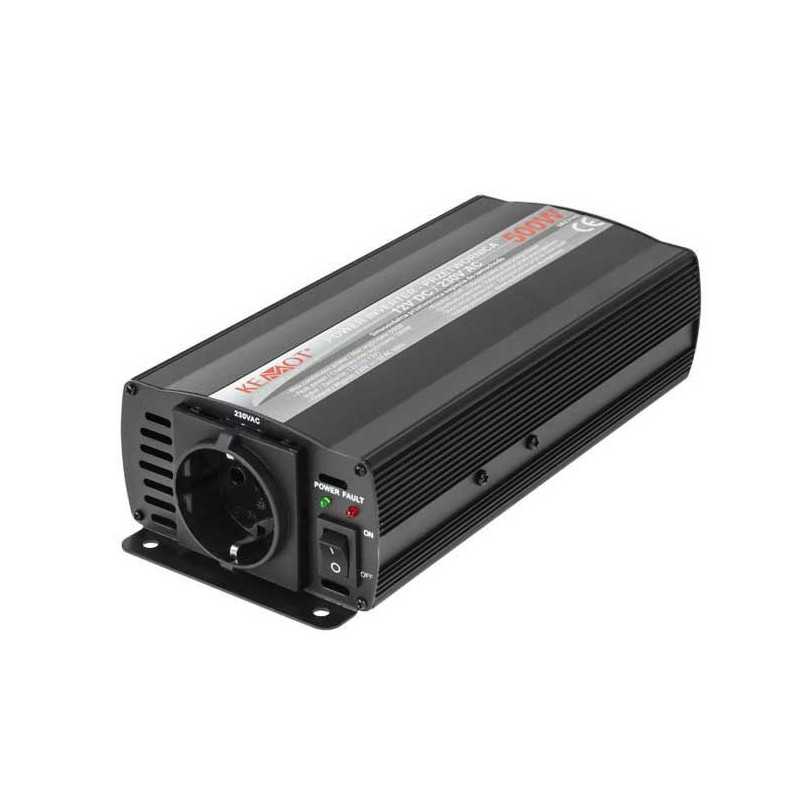

- Tension converter - RMS voltage converter in automotive 12VDC/230vac - Output power: 500W - Maximum output power: 1000W - Power: 12V DC (10-15 V) - Exit: 230V + /-5V AC 50Hz - Internal protection: - Low Battery Alarm (battery) - overheating protection - Overload protection - Protection recently - Overvolutionary protection - connecting to a cigarette lighter, a set of cables with crocodiles - warranty: 1 year

- inverter chemot dc - DC - input voltage: 24V DC +/- 1V - Exit voltage: 12.5 VDC +/- 1 in - Maximum output current: 10 A +/- 0.5a - working tension: 22 V - 29 in DC - Fuse: 10 a - Protection against overload, short contact, above tension above 30 V DC or too low input voltage below 19 VDC. - work topics, Peraturt: 5 º C ~ 35 º C - warranty 12 months
